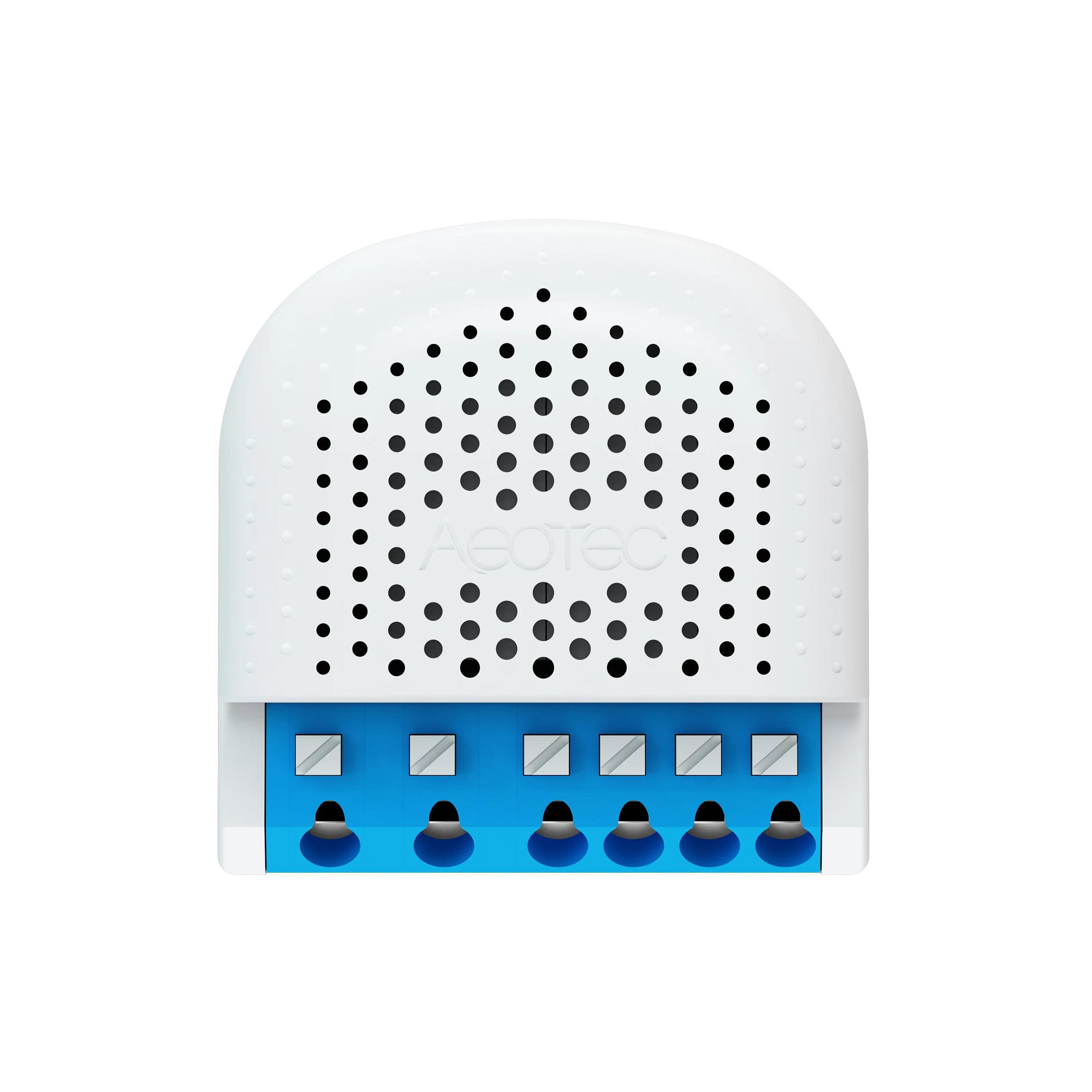

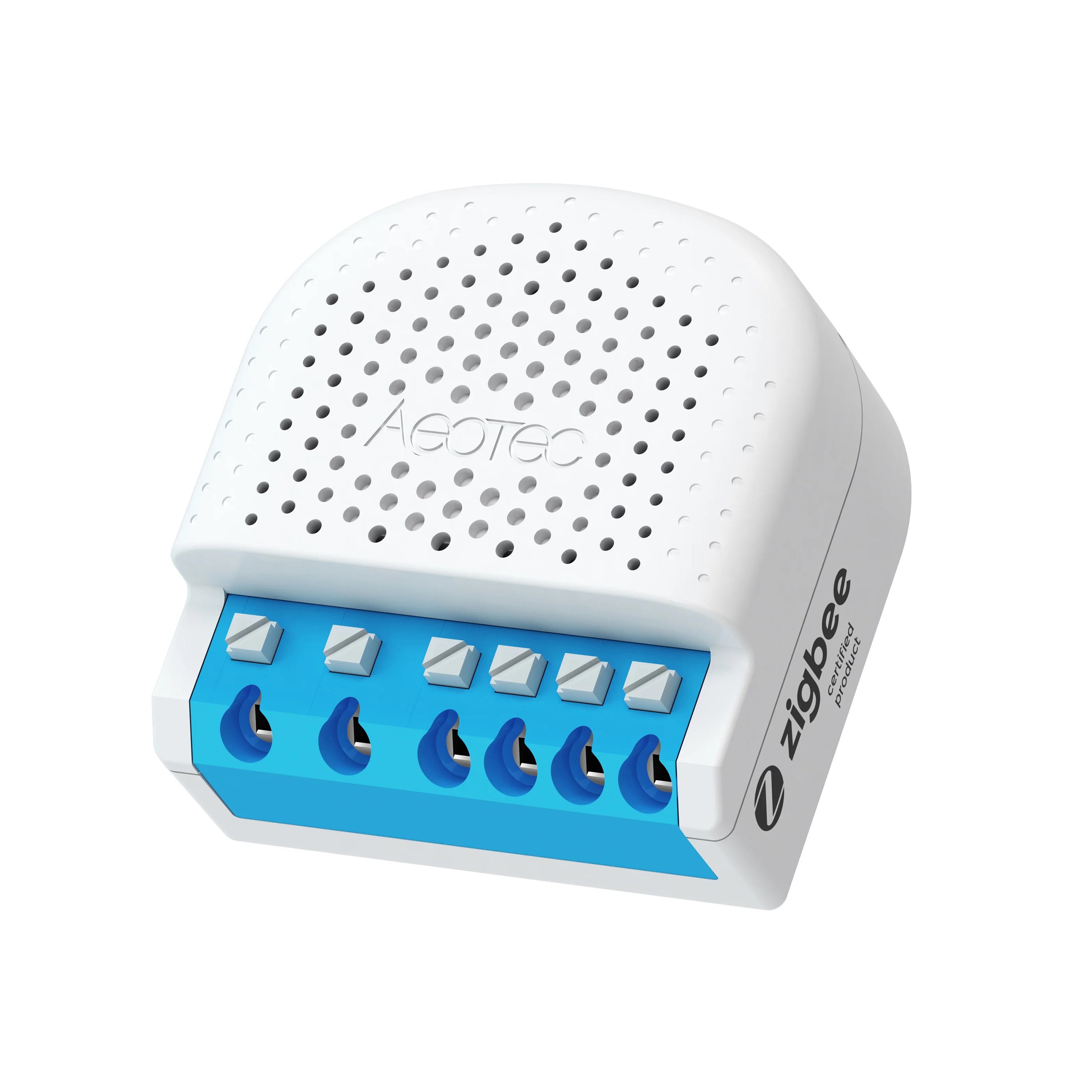

Introducing the Pico Duo Switch - the ultimate solution for transforming your living space into a state-of-the-art, smart oasis. Say goodbye to outdated switches and hello to a new era of convenience, comfort and control. Pico Duo Switch is a retrofittable flush-mounted switch that controls and reads the energy consumption of sockets, devices or lights via Zigbee and the Aeotec Smart Home Hub.

Manage lights
The Pico Duo Switch gives you the ability to automate the lighting and appliances in your home with just one touch. Easily create custom schedules and scenes that fit your lifestyle, creating the perfect atmosphere for any occasion. Whether it's a cozy movie night or a happy and energetic gathering, with the Smart Home flush-mounted switch you have everything under control.

Always under control
The Pico Duo Switch not only provides you with information but also allows you to take action effortlessly. Using the app or voice commands with compatible voice assistants, you can remotely turn off or schedule specific devices' power usage, ensuring they don't use unnecessary energy when not in use. No more worrying about whether you have left a light on or whether a device is running unnecessarily - with the Smart Home flush-mounted switch you are in command, even when you are not at home.

Great job
The exceptional quality allows switching of up to 16 amps. The Pico Duo Switch was designed with your safety in mind. With its built-in overload protection, it protects your devices and prevents possible damage from power surges.

Stay safe
Safety and protection are at the forefront of the design of the Pico Duo Switch. Combined with smart sensors, it automatically detects movement and adjusts lighting accordingly, providing both comfort and energy savings. In addition, the timer and random mode functions give the impression of an occupied home even when you are away, providing additional security and peace of mind.

Easy and quick installation
With the Smart Home flush-mounted switch, installation is child's play because it fits seamlessly into any standard electrical socket. The Aeotec Pic'n Go design is equipped with standardized spring clips that are easy to install and reliable. Plus, you can rest assured that the Pico Series will stand the test of time with its durable construction and reliable performance.

Features:

• Easy installation thanks to spring terminals
• High security with latest DIN EN60669 certification

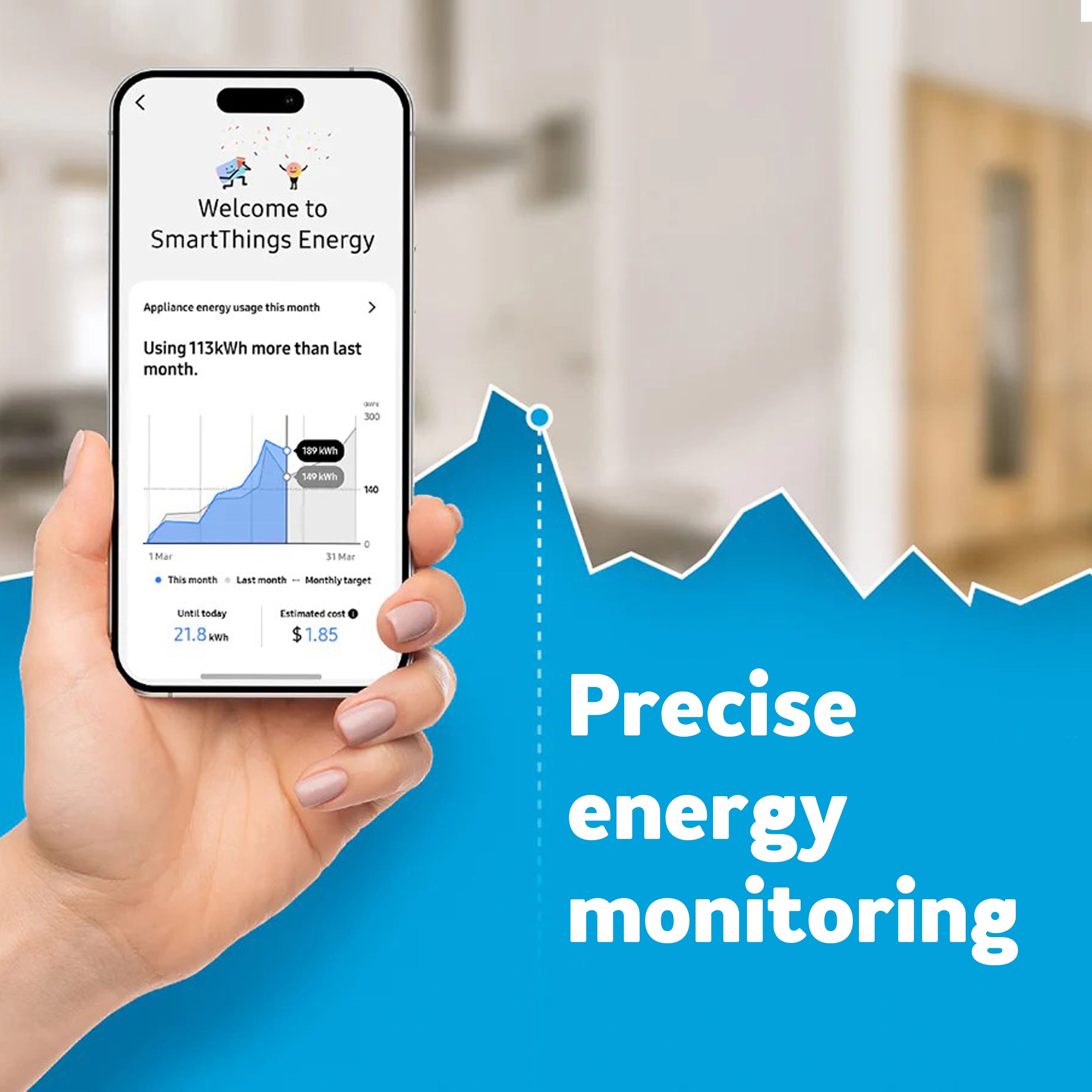

• Power metering
• Automatic switch recognition
• Scene controller function
• Works with SmartThings Edge integration for local automations
• Zigbee 3.0 and Touchlink function
• Over current and heat protection
• Acts as a Zigbee signal repeater

Specifications

• Zigbee Hardware: EFR32MG21
• Zigbee 3.0 Repeater: Yes
• Zigbee Backward Compatibility: ZHA, ZLL
• Zigbee Profile: 0x0104 (Home Automation)
• Max Signal Strength: 17.02 dBm
• Device max. Power Consumption: 1 W Power Rating: 110-230V~, 50/60Hz
• Supported Switch Types: Momentary (NC/NO); 2-Way Switch; SPDT Switch
• Max Current: Resistive – 2x 8A each output; Capacitive - 2x 8A@cosΦ = 0.75~0.80; Inductive - 3.6A, 1/3HP each output
• Built-in: Overheat Protection, Surge Protection, Temperature Sensor
• Operating Temperature: 0°C to 40°C.
• Relative Humidity: 8% to 80%.
• Operating Distance: More than 50 meters indoors. Up to 100 meters outdoors.
