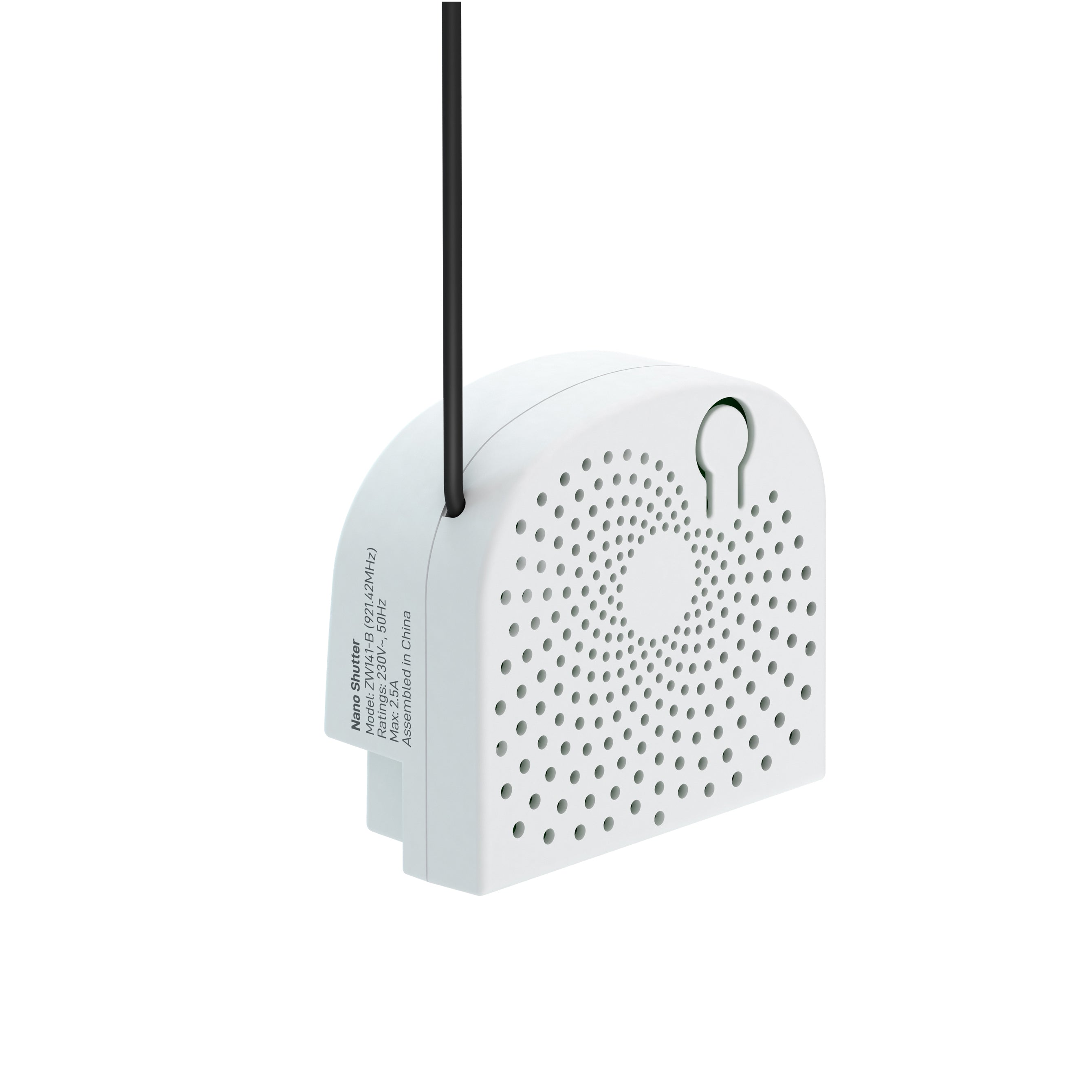

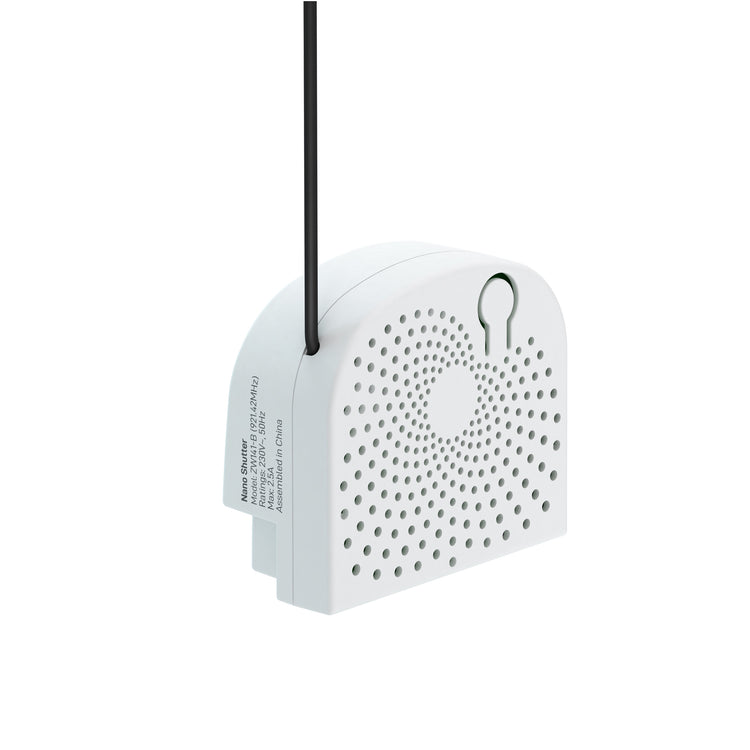

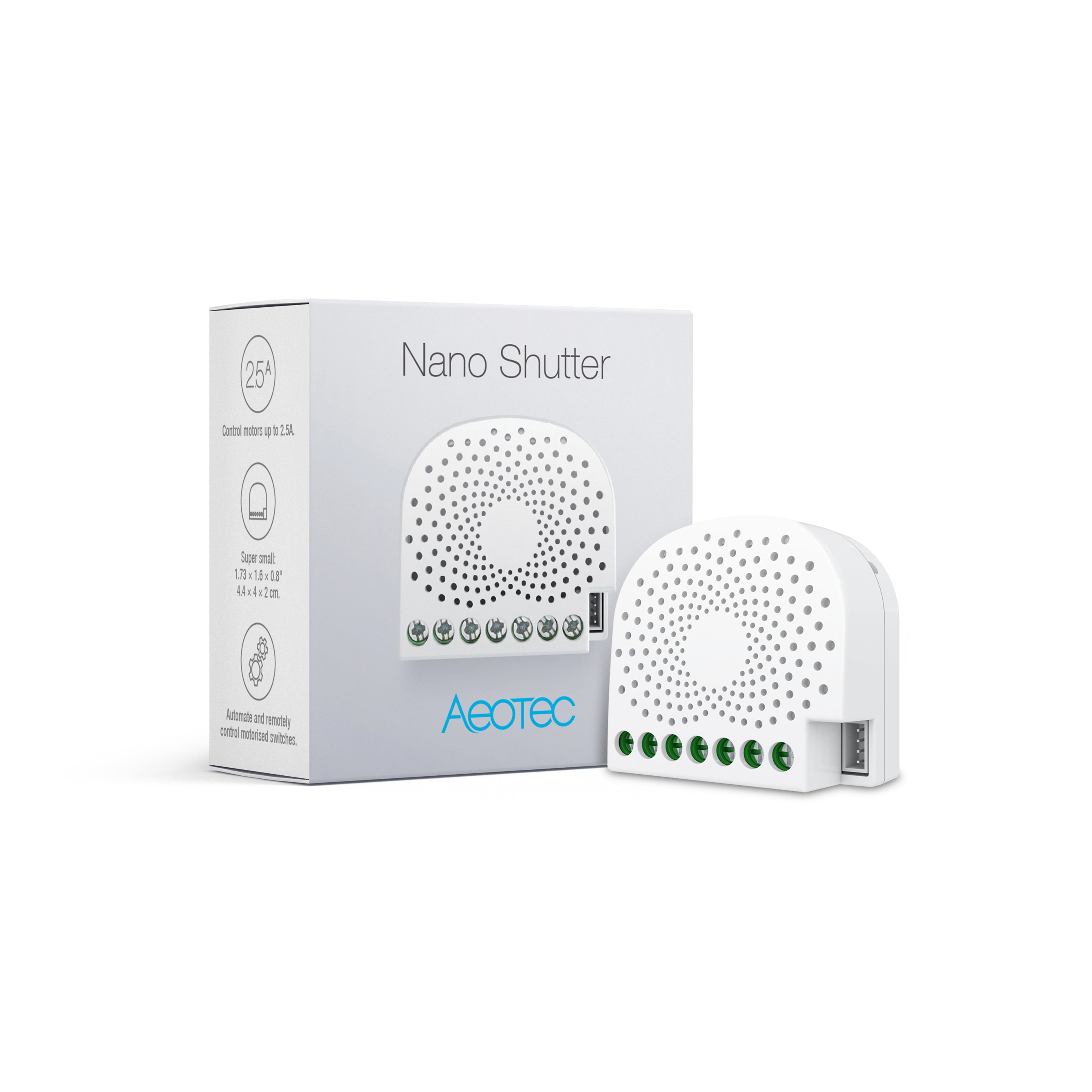

Nano Shutter converts existing motor controllers, which draw up to a maximum of 2 x 2.5 amps, to Z-Wave controllable motors.

What makes it special.

1. Best-in-class amperage.
   Nano Shutter can draw up to a maximum of 2.5 amps when used with an inductive load. That’s the equivalent of 5 amps with a resistive load. 2.5A sees Nano Shutter easily outperform competitors’ offering of just 1.7A.
2. Best-in-class security.
   Nano Shutter is the only Z-Wave motor controller with S2 integrated. S2 (Security 2) enhances the security of Z-Wave with next-generation anti-hacking features including AES-128 bit encryption and ECDH key exchange. Find out more about S2 at aeotec.com/z-wave-s2
3. Largest wireless performance.
   Built upon Z-Wave Plus, Nano Shutter has been certified to wirelessly communicate over a 150 metre / 492-foot distance in interference-free environments. Owing to its use of S2, Nano Shutter also offers a wireless speed that is up to 50% faster versus non-S2 motor controllers.
4. 60% smaller.
   Crafted to be simple to install, Nano Shutter has also been crafted to be easier to install. At only 1.7” x 0.8”, it’s 60% smaller than Aeotec’s Micro Motor Controller.
5. New 3.04 version supports has updated the SDK to v6.81.03,  changed the Device type to Motor_C type for supporting the configuration of specific position, added Shutter and Venetian calibration modes, added Central Scene CC for supporting manually triggering Scene control.

Specifications

• Power Input: 120 - 240VAC and 50/60Hz
• Power Output:
• Motor type: Single-phase AC asynchronous motor.
• Max load rating: 100-240VAC, 50/60Hz, Max:2.5A.

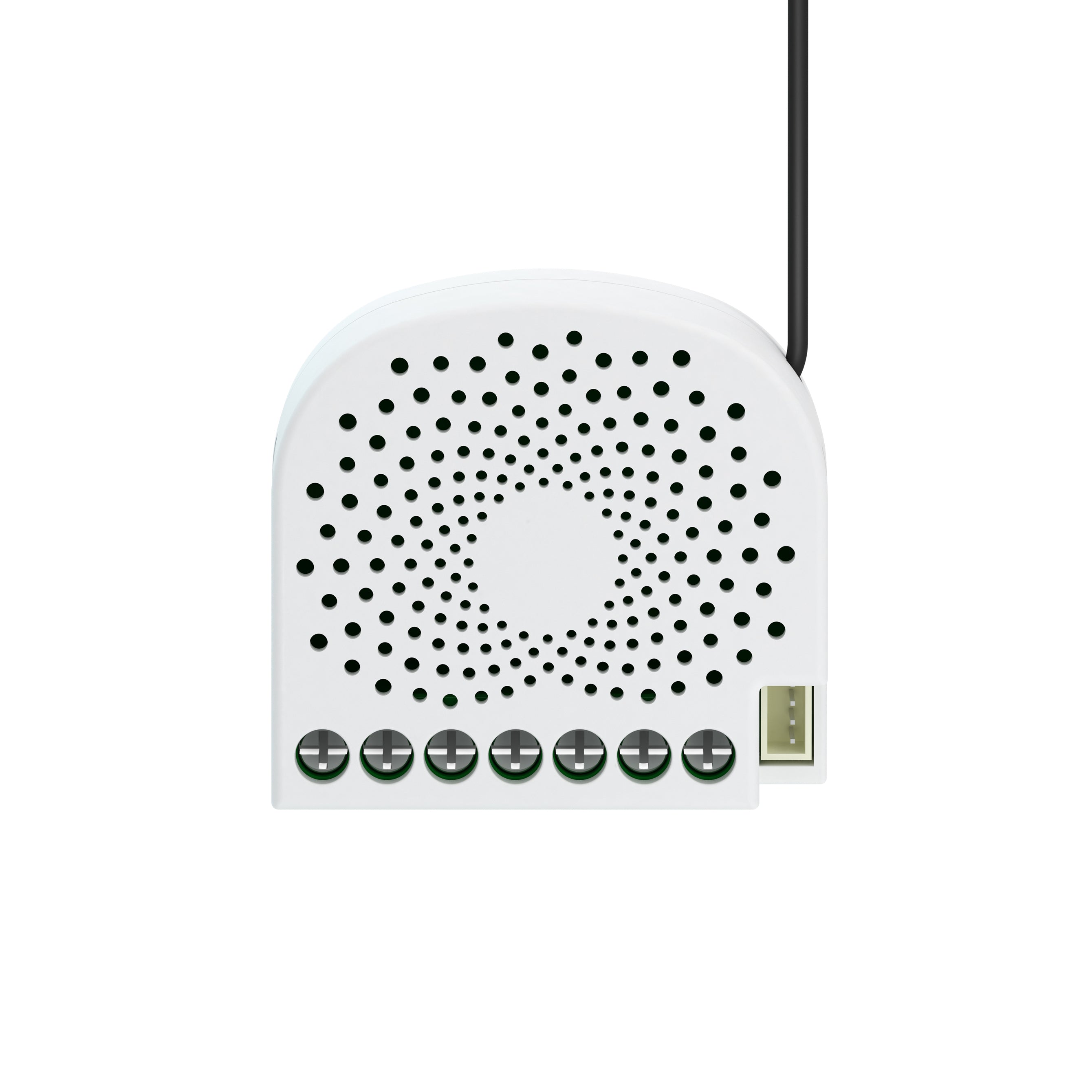

• Wiring Terminals: N, L, IN, OUT1, OUT2, S1, S2, Touch Panel

N – Power input for neutral.
L – Power input for live..
IN – Input for load power supply.
OUT1 – Output for Motor direction 1.
OUT2 – Output for Motor direction 2.
S1 – External switch 1 control for Motor.
S2 – External switch 2 control for Motor.

• Max standby power: <0.8W.
• Environment of Installation:

• Operating temperature:

• Operating humidity: 8% to 80%.
• Operating distance:

More information

Aeotec maintains Nano Shutter user guide and setup information at that link.

Visit technical specifications of Nano Shutter at aeotec.freshdesk.com/support/solutions/articles/6000198818-nano-shutter-technical-specifications-

Gateway compatibility please check aeotec.com/z-wave-gateways here.
