Illumino Switch provides the power to manually control. It makes a switch a smart switch. It enhances individual lights or associated electronics with everything from automatic timers to responsive automation. illumino Switch does this through its use of Aeotec’s Gen7 technology and compatibility with Z-Wave gateways, including Aeotec Smart Home Hub and SmartThings.

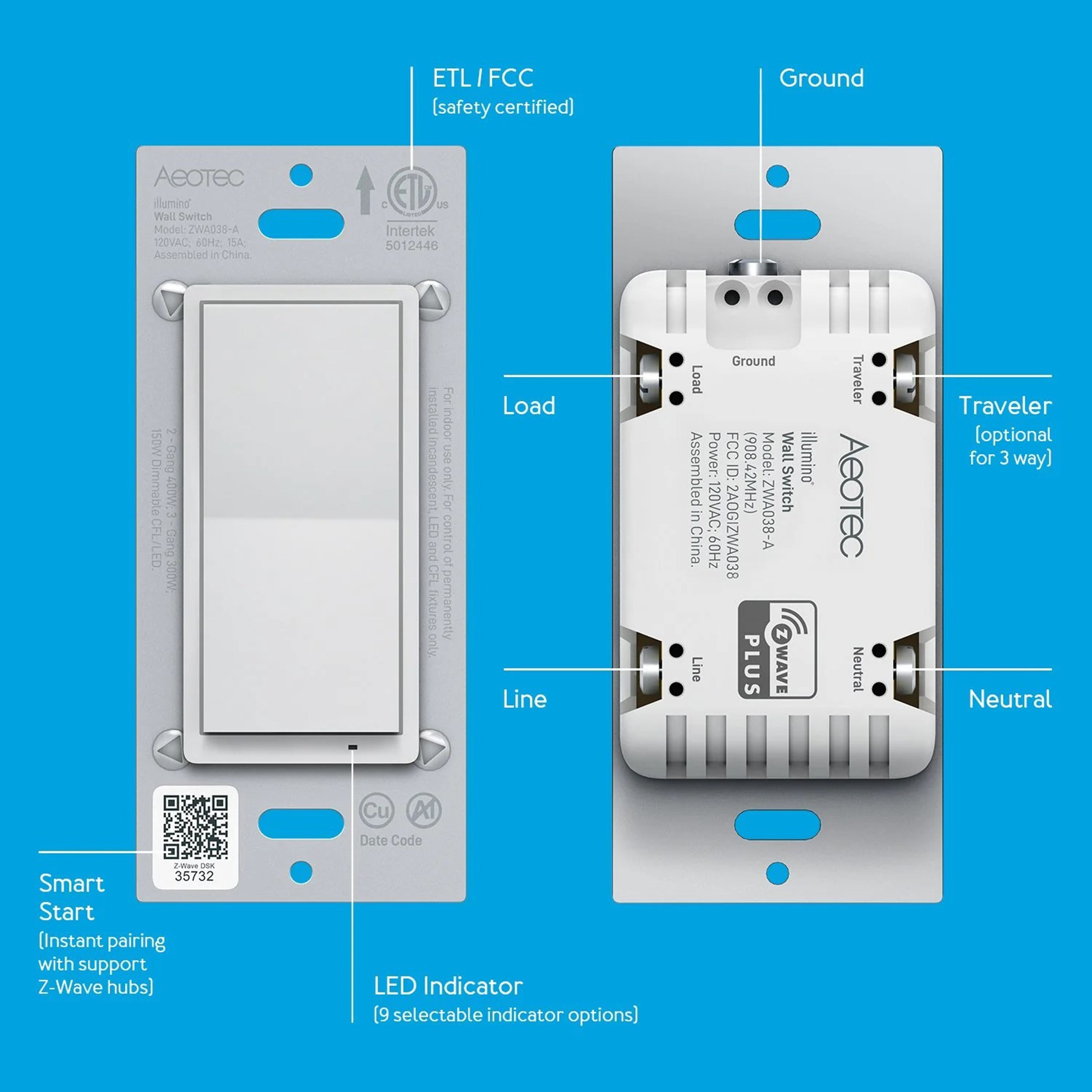

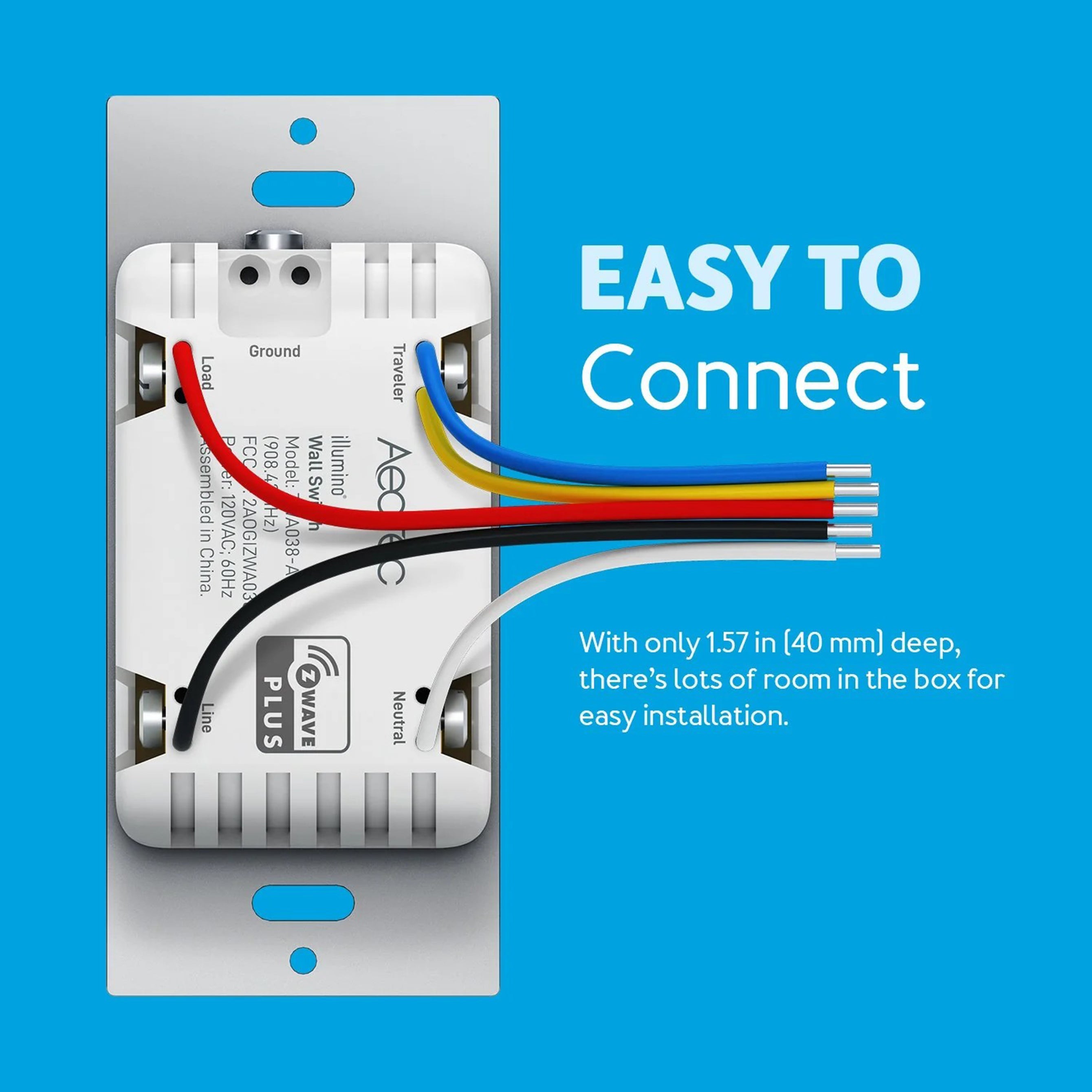

Easy installation. Powerful lighting doesn’t mean complicated wiring – wiring terminals are clearly marked and firmly secured with easy-access to dual-offset Ground, Line, Load, required Neutral, and optional Traveller ports for 3-way+ installations. With an array of tutorials available for everything from single-switch to multi-way installations, illumino Switch is simple to wire. In the event that you’re not sure which wire goes where, or cannot identify Line from Load, Aeotec’s support team can guide you.

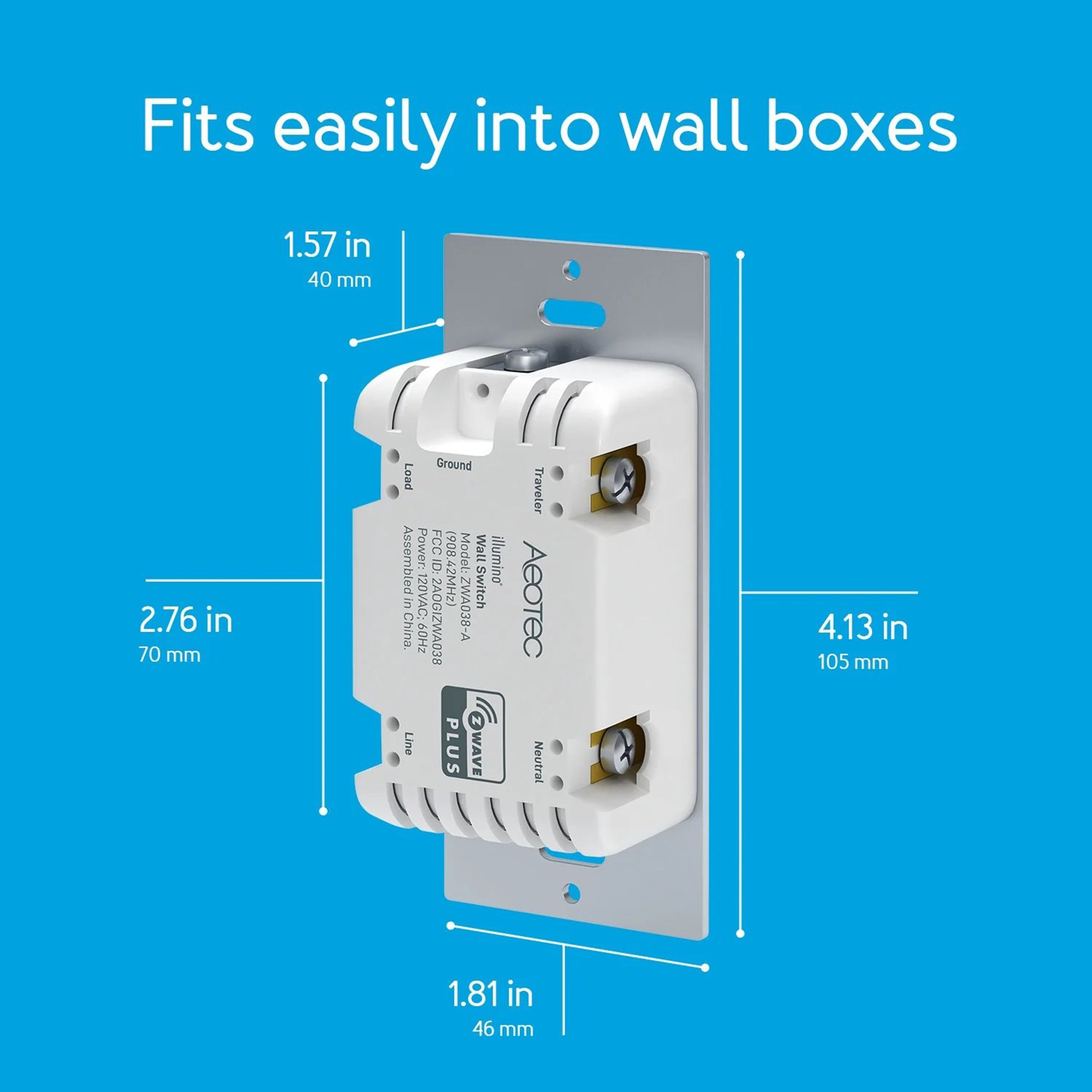

Wires easily. Fits perfectly. For seamless, in-wall installation illumino Switch has been engineered to be as small as possible without compromising on safety. With its electronics measuring only 1.18″ in depth and 1.73″ in width, illumino Switch’s low-volume allows to fit into most single and multi-gang backing boxes without difficulty.

It’s just as easy when it comes to the finishing touches as well. Crafted to North American standards, any installation of illumino Switch can be completed with screwed or screwless faceplates from a range of makers.

Specifications

• Input Voltage: 110/120 VAC 50/60Hz
• Max standby power: 0.6W

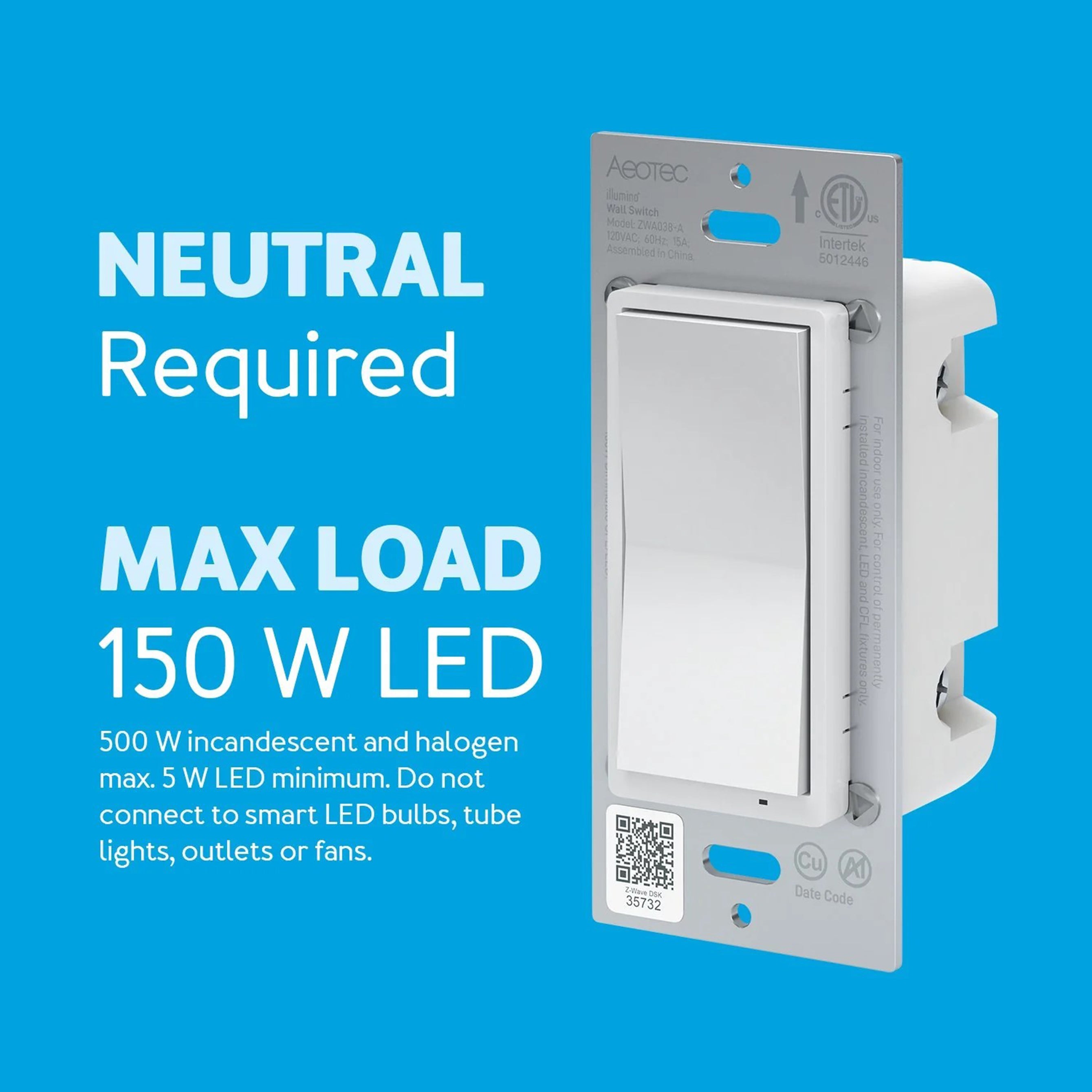

• Continuous Maximum Load:

• Resistive load: Max 1800W
• Capacitive load: Max 960W (LED/CFL)
• Inductive load: Max 380W (Motors)
• Power type: Wired
• Operating temperature:

• Operating humidity: 8% to 80%.
• Operating distance:

More information

• Aeotec maintains illumino Switch user guideand setup information at that link.
• Aeotec maintains a list of compatible gateway software at that link
