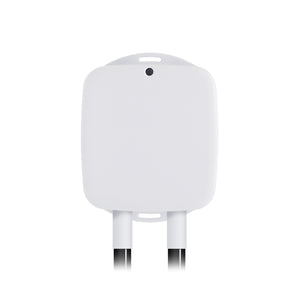

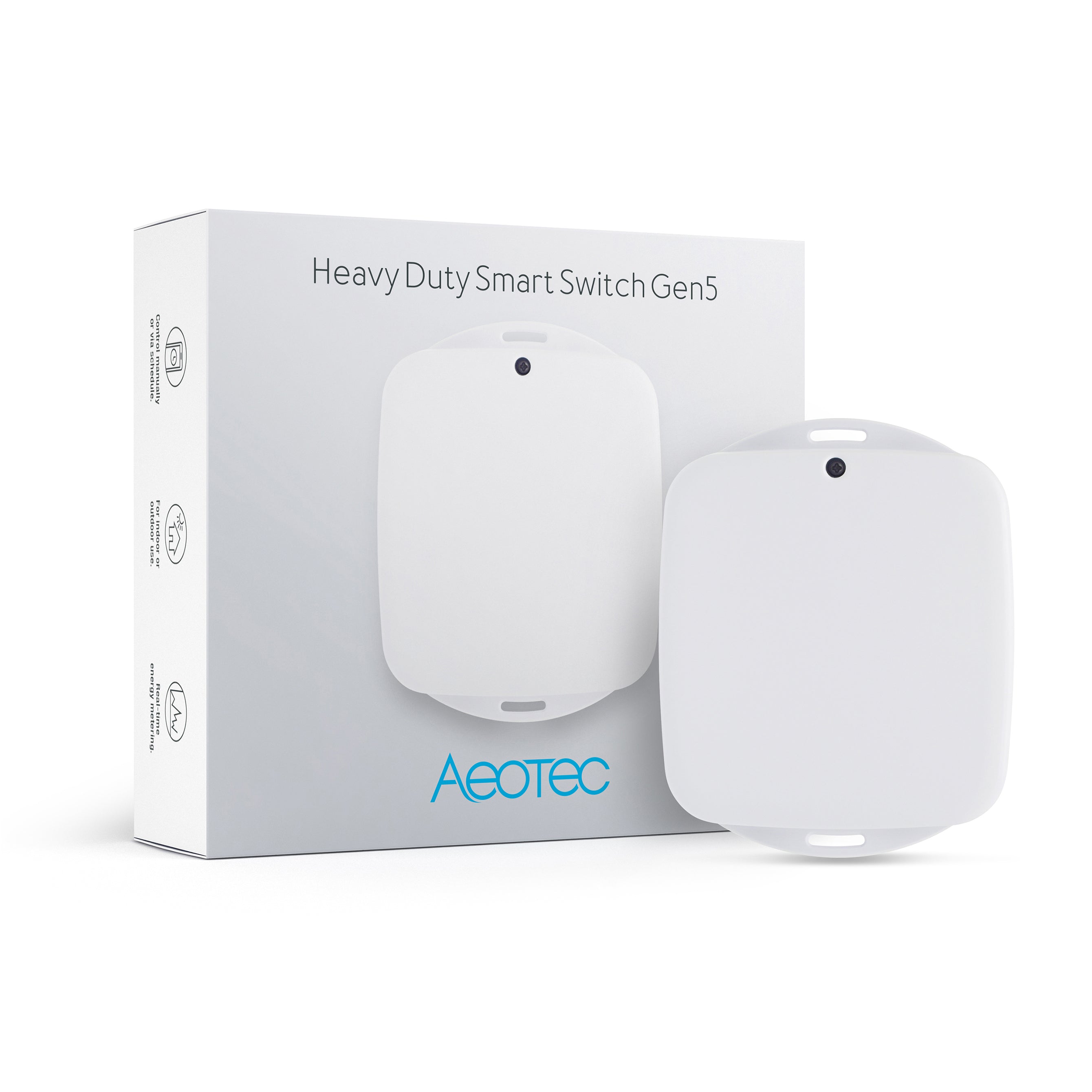

Heavy Duty Smart Switch Gen5

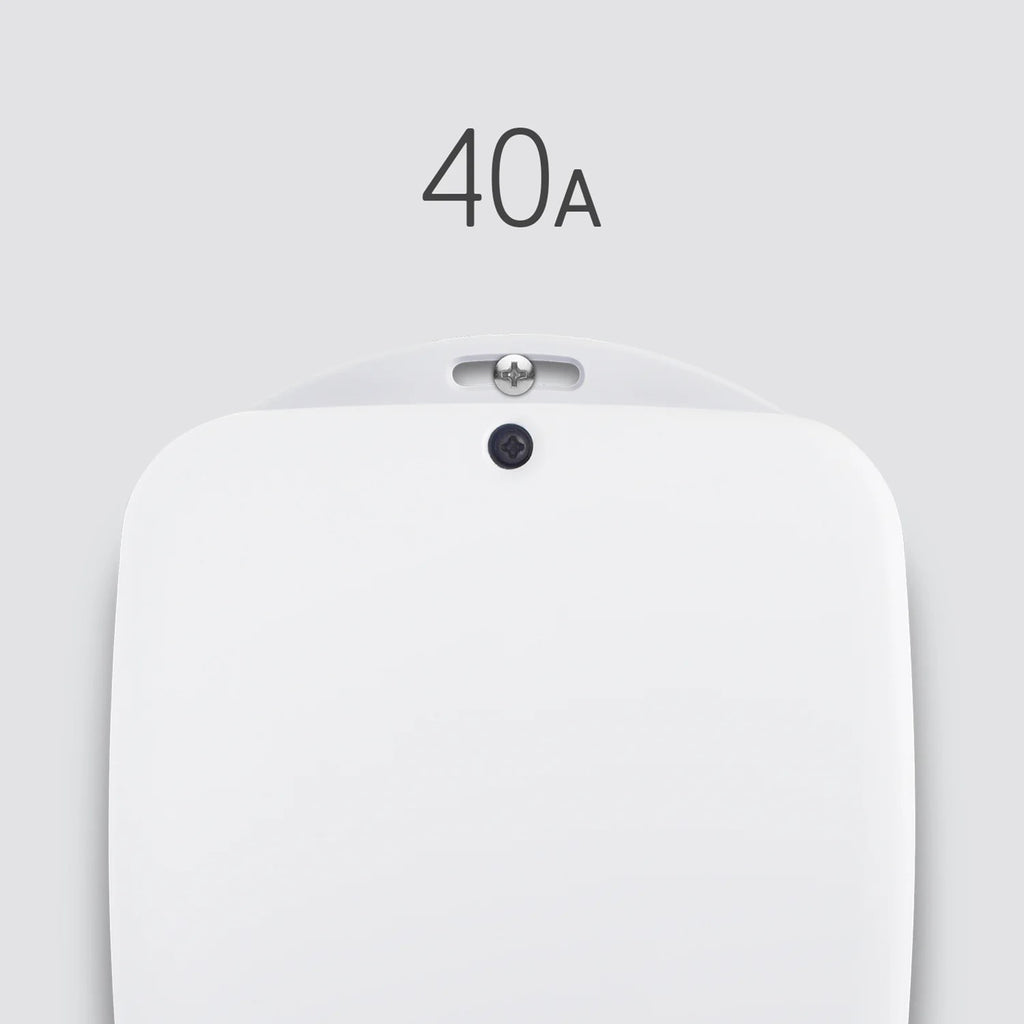

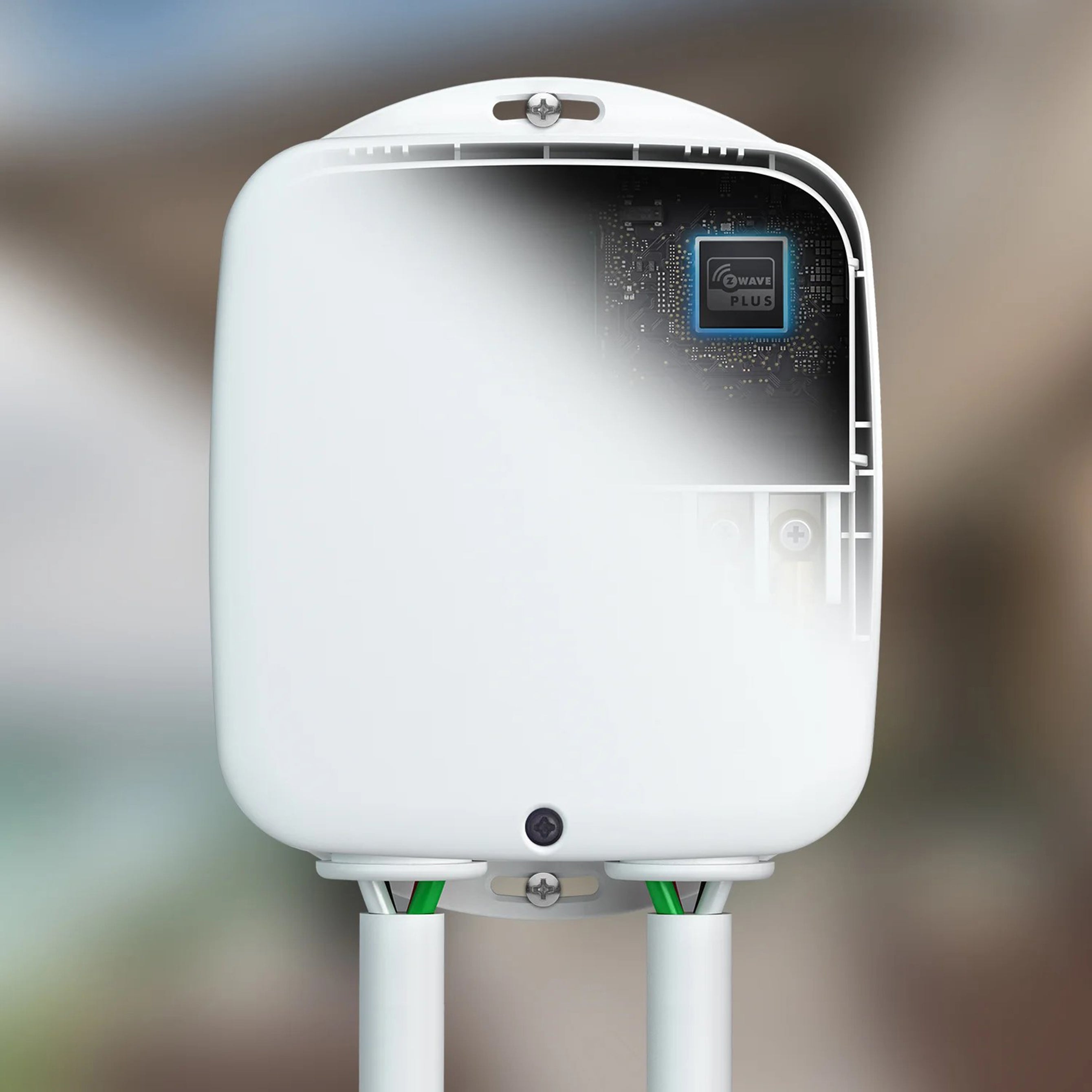

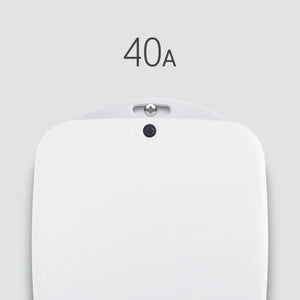

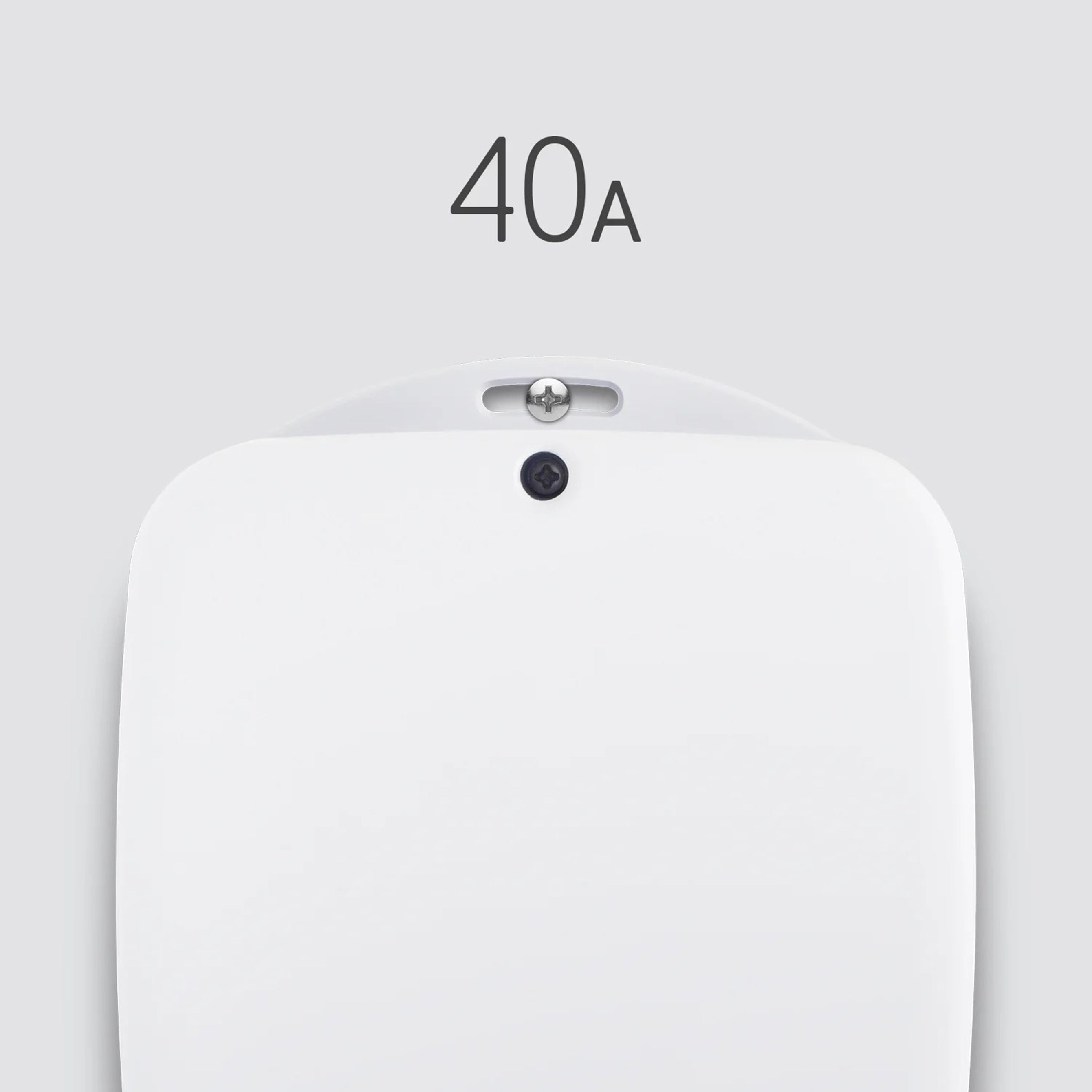

There are big electronics and appliances in your home. Big fridges and pool pumps. Hot water systems and electric car chargers. Heavy Duty Smart Switch was made for it. It can power devices that draw up to 40 amps or 9600 Watts of power. Like our plug and play Smart Switches, Heavy Duty Smart Switch is built upon the latest Z-Wave technology: Z-Wave Plus.

Technical Specifications

Repeater: Yes

Beaming: Yes

Power Consumption: 1W

Ratings:

2 phase (Split phase - US)

240VAC, 50/60Hz;

Maximum 9600 Watts 40A Resistor;

240VAC 5HP AC Motor;

1 phase only (Split phase - US)

120VAC, 50/60Hz;

Maximum 4800 Watts 40A Resistor;

120VAC 5HP AC Motor;

1 phase (EU/AU)

240VAC, 50/60Hz;

Maximum 9600 Watts 40A Resistor;

240VAC 5HP AC Motor;

Minimum energy sensor reading: 2W

Energy reading percentage of error:

Less than 300W: +-3W

Great or equal to 300W: +-1%

RF range:  500ft/150m outdoor;

Endurance of 10ms period peak current of 1440A

Waterproof Rating:  IP44

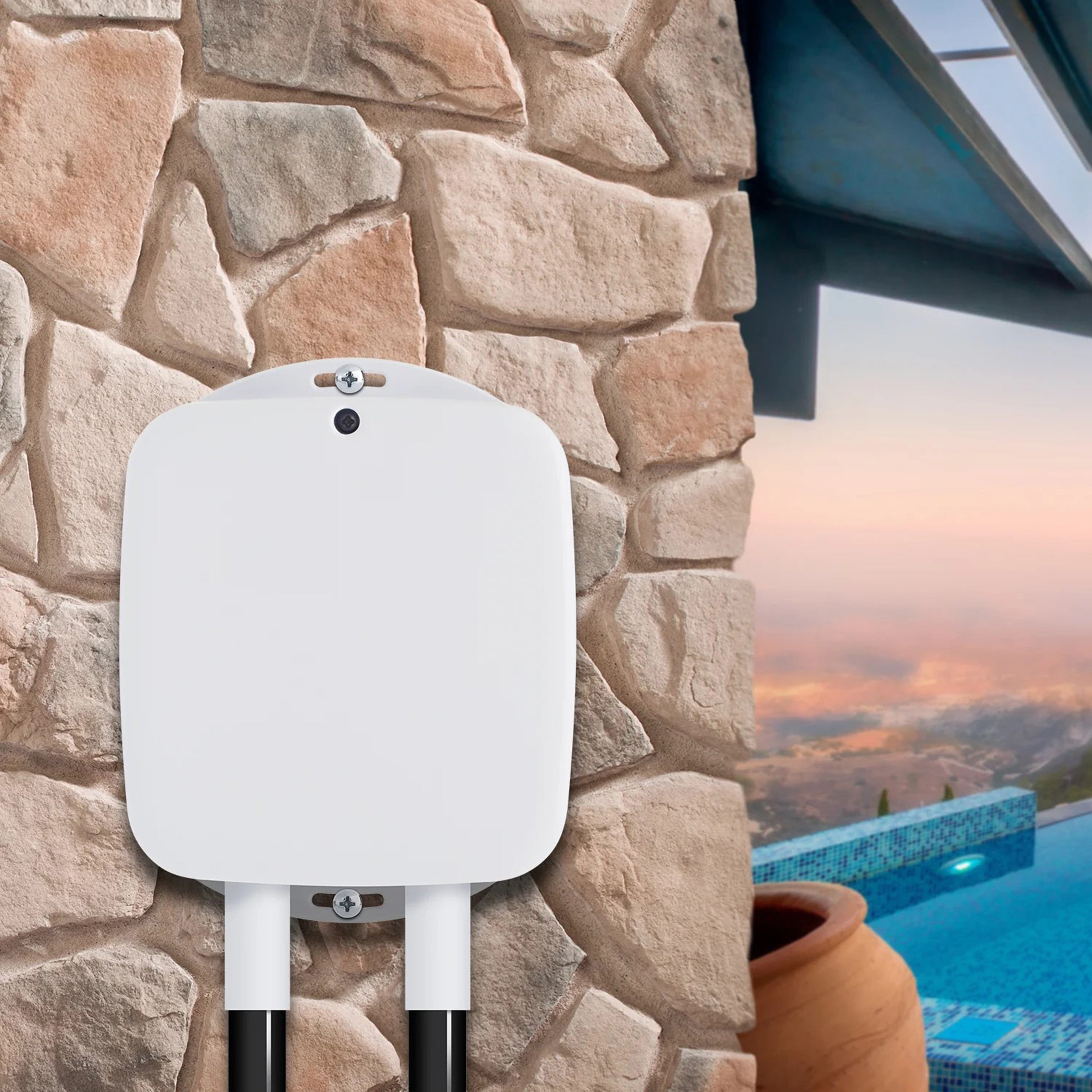

Environmental Conditions:  Indoor and outdoor use;

Altitude up to  2000m;

Operational temperature: 5°C to 40°C;

Max. relative humidity: 80%;

Pollution degree  2.

Product Size/Dimensions:

5.9 x 4.7 x 1.6 inches

150 x 119 x 41 mm

 Screw Size: PM3.0×12mm

More technical specifications can be found in Aeotec Heavy Duty Smart Switch Tech Specs

More information

Aeotec maintains Heavy Duty Smart Switch Gen5 user guide and setup information at that link.

Gateway compatibility please check aeotec.com/z-wave-gateways here.
